How to assemble a small planetary gearbox?

Hey there! I'm a supplier of small planetary gearboxes, and today I'm gonna walk you through how to assemble a small planetary gearbox. It might seem a bit daunting at first, but with the right steps and a bit of patience, you'll have it up and running in no time.

What You'll Need

Before we start assembling, let's gather all the necessary tools and parts. You'll need a set of wrenches, a screwdriver, some grease, and of course, all the components of the small planetary gearbox. These typically include the sun gear, planet gears, ring gear, carrier, and output shaft. Make sure you have everything on hand before you begin.

Step 1: Prepare the Workspace

Find a clean, well-lit area to work in. You don't want any dirt or debris getting into the gearbox components. Lay out all the parts in an organized manner so you can easily access them as you go. It's also a good idea to have a container nearby to keep small parts like screws and washers from getting lost.

Step 2: Inspect the Components

Take a close look at each component to make sure there are no visible damages or defects. Check for any burrs on the gears, cracks in the housing, or loose parts. If you find any issues, it's best to replace the faulty component before proceeding. This will ensure the proper functioning and longevity of the gearbox.

Step 3: Grease the Gears

Apply a thin layer of grease to the teeth of the sun gear, planet gears, and ring gear. Grease helps reduce friction and wear between the gears, which in turn improves the efficiency and lifespan of the gearbox. Make sure to use a high-quality grease that is suitable for the operating conditions of the gearbox.

Step 4: Install the Sun Gear

The sun gear is usually the central gear in the planetary gear system. Carefully place it in the center of the gearbox housing. Make sure it is properly aligned and can rotate freely. You may need to use a small tool to hold it in place while you proceed with the next steps.

Step 5: Install the Planet Gears

Next, install the planet gears around the sun gear. The number of planet gears can vary depending on the design of the gearbox. Make sure each planet gear meshes properly with the sun gear and the ring gear. You may need to use a spacer or a special tool to ensure the correct spacing between the planet gears.

Step 6: Install the Ring Gear

The ring gear is the outermost gear in the planetary gear system. Carefully place it over the planet gears, making sure it meshes properly with them. You may need to apply a bit of pressure to get it into place. Once it's installed, check to make sure it can rotate freely.

Step 7: Install the Carrier

The carrier holds the planet gears in place and connects them to the output shaft. Place the carrier over the planet gears and align it with the housing. Secure it in place using the appropriate screws or bolts. Make sure the carrier can rotate smoothly without any binding.

Step 8: Install the Output Shaft

The output shaft is connected to the carrier and transmits the power from the gearbox to the load. Insert the output shaft into the carrier and make sure it is properly aligned. Secure it in place using a key or a set screw. Check to make sure the output shaft can rotate freely.

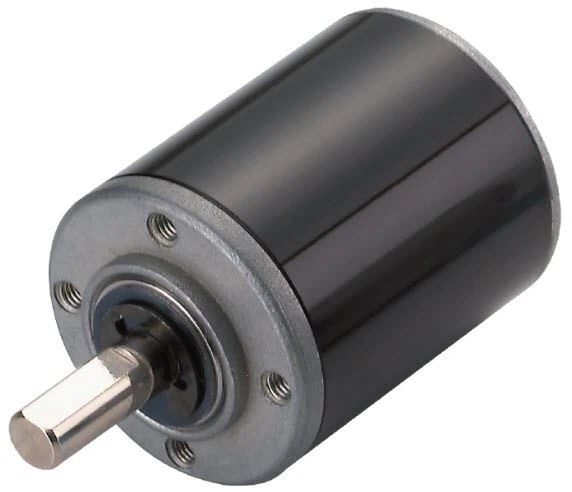

30mm Planetary Gearbox Planetary Gear Reducer

Step 9: Check the Assembly

Once you have installed all the components, take a final look at the assembly to make sure everything is in place and properly aligned. Rotate the input shaft (usually connected to the motor) and the output shaft by hand to check for any binding or unusual noises. If everything seems to be working smoothly, you're almost done.

Step 10: Seal the Gearbox

To prevent dirt and debris from entering the gearbox, it's important to seal it properly. Apply a gasket or a sealant around the edges of the gearbox housing and cover it with the lid. Secure the lid in place using the appropriate screws or bolts. Make sure the seal is tight to ensure the long-term performance of the gearbox.

Conclusion

Assembling a small planetary gearbox may seem like a complex task, but by following these steps, you can do it yourself with ease. Remember to take your time, be careful with the components, and use the right tools. If you have any questions or need further assistance, don't hesitate to reach out to us.

As a supplier of small planetary gearboxes, we offer a wide range of products to meet your specific needs. Whether you're looking for a Planetary Gear Reducer, a Mini Planetary Gearbox, or a 30mm Planetary Gearbox, we have you covered. Our products are made from high-quality materials and are designed to provide reliable performance and long service life.

If you're interested in purchasing our small planetary gearboxes or have any other inquiries, please feel free to contact us. We're here to help you find the right solution for your application.
